News

In this section news will be added regularly, e.g. regarding products, services or updates of the website.

22.02.2022 - Video-Section

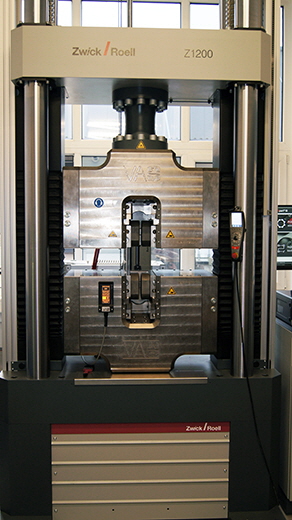

1200kN double-sided hydraulic clamping tool with mechanical syncronization for short samples

Specification



Clamping tool:

P/N.: V.1200.HY.HY.KP.0
Nominal load: 1200kN
Clamping range: 0 – 100mm
External dimensions: 800 x 500 x 440mm BxHxT

Weight: about 1200kg/pc.


Suitable for short samples

22.02.2022 - Video-Section

Impact test milling device

With this milling device, the lenght and the notch of 18 samples can be milled in one clamping process.

19.10.2020 - Video-Section

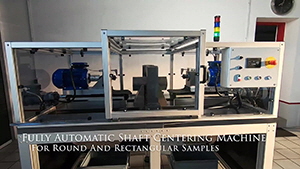

In the Video section a clip of a new fully automatic shaft centering maschine for round and rectangular samples was added.

14.07.2020 - 1500kN double-sided hydraulic clamping tool with hydraulic synchronization

Specification



Clamping tool:

P/N .: V.1500.HY.HY.0
Nominal load: 1500kN
Clamping range: 0 - 120mm
External dimensions: 900 x 540 x 400mm WxHxD
Weight: about 1400kg/pc.


Suitable for flat samples and round samples made of metallic and non-metallic materials

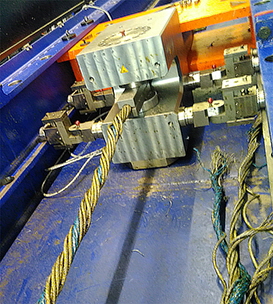

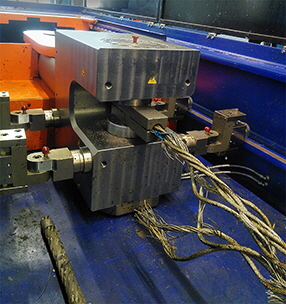

22.10.2019 - 2500 kN Hydraulic special clamping tool for testing ropes and strands

Description



Clamping tool:
P/N .: V.2500.HY.ME.0
Rated load: 2500 kN
External dimensions:

810 x 500 x 700mm WxDxH
Weight: about 2400 kg


Hydraulic system:
P/N .: V.AG.2500.1
External dimensions:

500 x 750 x 1200mm WxDxH
Volume: 65-70dB


Remote control with touchscreen

02.10.2019 - Video-Section

In the Video section a clip of a new 2000kN hydraulic clamping tool was added.

17.04.2017 - Video-Section

In the Video section a clip of a new 100kN wedge clamping tool with hydraulic preload was added.

17.04.2017 - Business Card

The business card, optimized for different devices, is from now on downloadable in the section “Site Notice”.





22.02.2017 - Leaflet

The leaflet is from now on downloadable under the section “Service” respectivley “Products”.



27.04.2015 - Product Update

We could increase the maximum nominal load of our clamping tools significantly, actual the amount for hydraulic clamping tools is 2000kN, for mechanical clamping tools 1500kN.

Specification

P/N: V.600.ME.PN.0

Nominal load: 600kN

Overall dimensions: 290 x 245 x 210mm WxHxD

Weight: ca. 77kg/pc.

Pneumatic connection: R 1/4“
Operating pressure: max. 6 bar


With the pneumatic mechanical clamping tool, metallic and non metallic samples can be clamped slip-freely.
The clamp load is generated with the wedge action. The preload is generated pneumatically.

27.04.2015 - 600kN pneumatic mechanical clamping tool

27.04.2015 - Video-Section

In the Video section a clip of a new pneumatic 1kN clamping tool was added.

17.06.2013 - Video-Section

In the Video section new clips were added.

11.12.2012 - Video-Section

In the “Video Section” product clips will be published soon.

22.10.2012 - 1500kN mechanical clamping tool with synchronisation and motorized preload

Specification

P/N: V.1500.KSCH.MO.0

Nominal load: 1500kN

Overall Dimensions: 840 x 450 x 300mm WxHxD (without motor)

Weight: ca. 720kg/pc.



Suitable for short samples, maximum  sample thickness 100mm



22.10.2012 - 300kN hydraulic clamping tool for textile fabrics

Specification



Clamping tool

P/N: V.300.HY.HY.1

Nominal load: 300kN

Overall dimensions: 648 x 375 x 300mm WxHxD

Weight: ca. 410kg/pc.



Hydraulic system

Overall dimensions: 500 x 1200 x 600mm WxHxD

Weight: ca. 120kg

Sound pressure level: 65-70dB



Remote control with touchscreen
